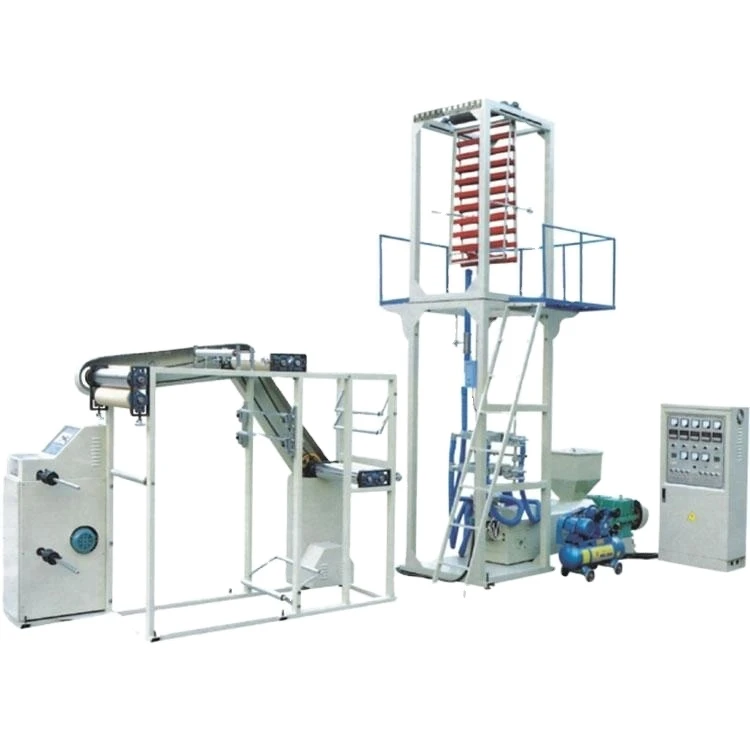

Zip lock film blowing machine/Zipper extrusion machine
Characteristics & Functions
The machine is innovated on the basis of film blowing machine. The bag mouth is directly equipped with concave convex buckle type self sealing chain, and the bag mouth can be self sealed at will. The main engine adopts frequency control, photoelectric control, automatic air supply, high technology content and strong applicability.
The raw material is LDPE, which is suitable for packaging of food, medicine, documents, industrial products and plastic products for export packaging, fruit, food, clothing, textiles and civil industrial products, etc.
Main technical parameters:
|
Model |
WTBC-45 |
|
Raw material |
LDPE(density0.921) |
|
Width of bag |
50-450mm |
|
Thickness of bag |
0.03-0.10mm |
|
Diameter of screw |
Φ45 |
|
L/D |
32:1 |
|
Power of main motor |
5.5kw |
|
Power of auxiliary machine |
0.75kw |
|
Heater |
15kw |
|
Cooling |
1.1kw |
|
Power |
28kw |
|
Voltage |
50Hz-60Hz 380V |
|
Output |
5-30kg/h |
|
Dimension (L×W×H) |
6500×1600×4200mm |
|
Total weight |
1.5T |
