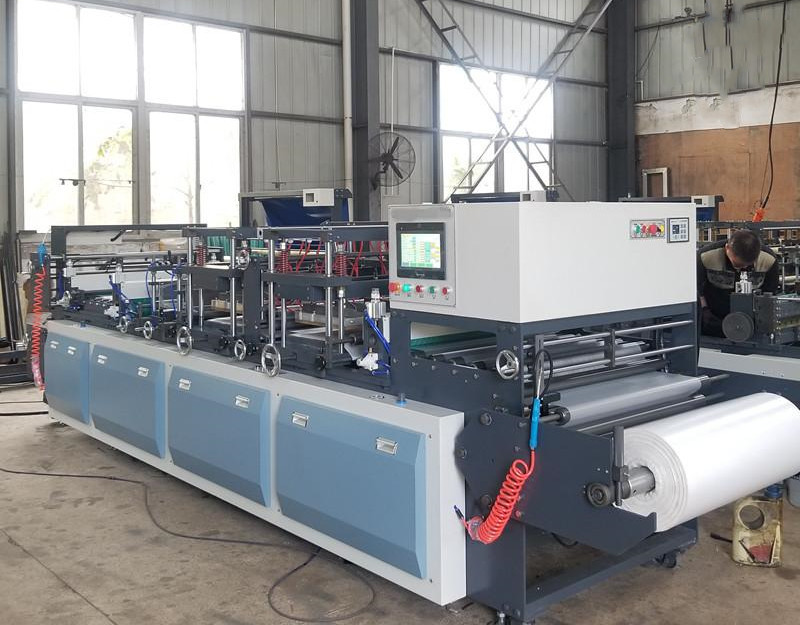

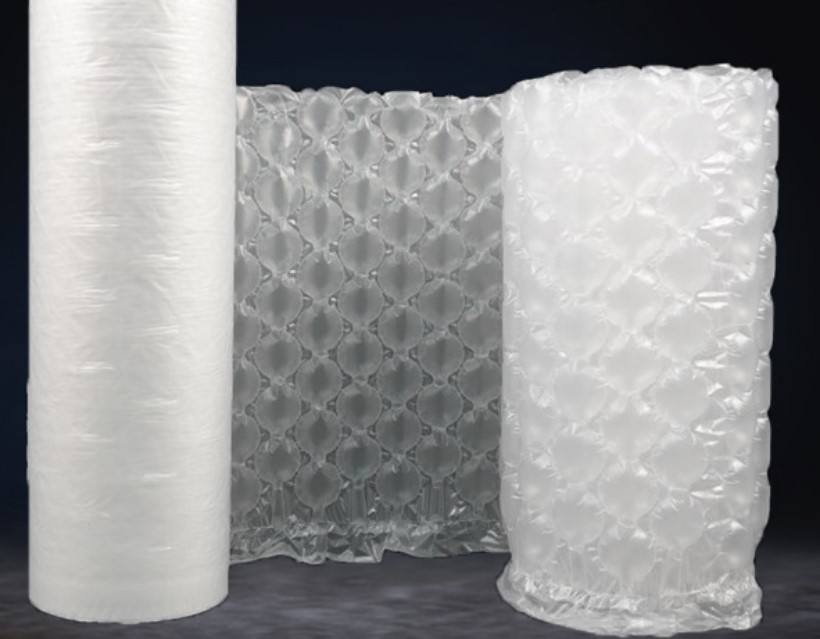

Air gourd bag making machine
Main mechanical configuration :
1.The whole equipment adopts 12mm steel plate and steel plate structure.
2.Unwinding Unit :
a、Adopt 0.4kw dc motor
b、Unwinding control adopts swing arm type material storage device
C、Unwinding tension: Intelligent tension control
d、Unwinding shaft: air shaft
e、Process rectifying photoelectric control unwinding and rewinding
3.Feeding part :Adopt spring rubber roller pressing close friction drive
Drive mode: double step pull material
4.Main drive section: The structure adopts crank rocker push-pull type two connecting rod main motor : 2.2kw ,inverter :2.2kw
5.The main control center is controlled by mitsubishi PLC, which displays the bag-making speed, bag-making length setting and
bag-making automatic counting.
Technical Parameter:
Max. film width
850mm
Film thickness
0.02-0.20+mm
Suitable material
PE 、PE film
Forming speed
120-150 time/min，480 pcs-600 pcs/min
(Speed is related to the thickness of the film and the material)
Air valve film sealing pressure
7560N
Column channel sealing pressure
395mmX2(Double molds)
Easy tear knife length
850mmX2(double sets Easy tear knife )
Max. feeding film roll diameter
Φ600mm
Max. winding film roll diameter
Φ450mm
Feeding air shaft diameter
Φ74mm
Winding air shaft diameter
Φ48mm
Air pressure
0.6-0.8MPa
Air consumption
0.8m3/min
Machine noise
55db
Rated power
30kw
Power supply
AC 380V, 50Hz three-phase four-wires
Machine weight
About3.5T
dimension
L5500×W1450×H1400mm
